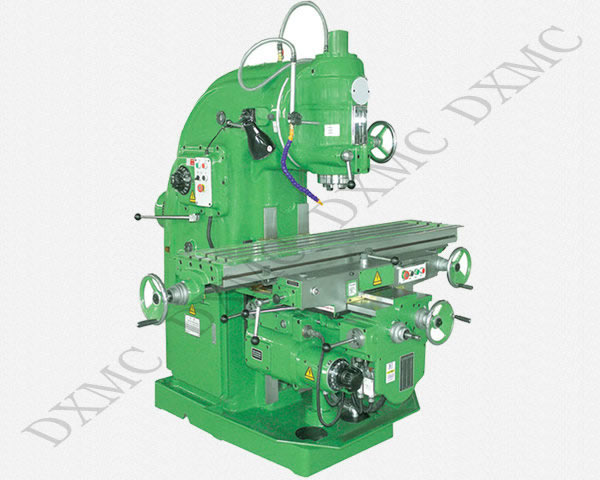

Working table size(L×W) | mm(in) | 1320×320 (52’’x13’’) |
T slot (Width × No. × Pitch) | mm(in) | 18x3x70 (0.7’’x3x2.8’’) |
Max. load-bearing | kg | 500 |
Longitudinal travel (manual/power) | mm(in) | 700/680 (27.5’’/26.8’’) |
Cross travel (manual/power) | mm(in) | 255/240 (10’’/9.4’’) |
Vertical travel (manual/power) | mm(in) | 350/330 (13.8’’/13’’) |
Spindle motor power | kW | 7.5 |
Spindle taper | | ISO50 7: 24 |
Spindle speed | rpm | 18 steps 30~1500 |
Max swiveling angle of vertical head | º | >±45º |
Distance from spindle nose to working table | mm(in) | 60-410 (2.4’’-16’’) |
Distance from spindle axis to column guideway | mm(in) | 350 (13.8’’) |
Feed step | | 18 |
Feed rate (X/Y/Z) | mm/min(in/min) | 23.5-1180/15-786/8-394 (0.93’’-46.5’’/0.6’’-31’’/0.31’’-15.5’’) |
Rapid feed (X/Y/Z) | mm/min(in/min) | 2300/1540/770 (91’’/61’’/30.3’’) |
Feed motor power | kW | 1.5 |
Overall dimensions(L×W×H) | mm(in) | 2294x1770x1904 (90’’x70’’x75’’) |
Packing size(L×W×H) | mm(in) | 2350×2070×2240 (93’’x81’’x88’’) |
Weight (net/gross) | kg | 2800/4000 |
