Knee Type Milling Machine X5036A

Types of knee milling machinery X5036A

SpecificationsX5036A
Spindle taperISO40
Distance from spindle axis to column guideway(mm)325
Distance from spindle nose to table surface(mm)60-460
Spindle speed range(r.p.m)60-1700 12 steps
Table size1250*360
Main motor(kw)4 kw
Motor for rapid device of table (X、Y)0.75kW
Motor for vertical device of table(Z)0.75kw
Range of longitudinal cross travel30-740mm/min 8 steps 1080mm/min (rapid)
Z speed of table (mm/min)590
T-slot (number-width-disance) (mm)3-18-80
Cooling pump motor power (kw)0.09
Cooling pump flow25L/M
Overall dimensions(mm)1700×1680×1880
N.W/G.W (kg)2200/2300

Standard accessories

Milling Chuck
Milling Vice
Milling Chuck
Spanner
Small Crank

Optional accessories

Rotary Table
DRO
Clamp Kit
Diviing Head

Types of knee milling machinery X5036A

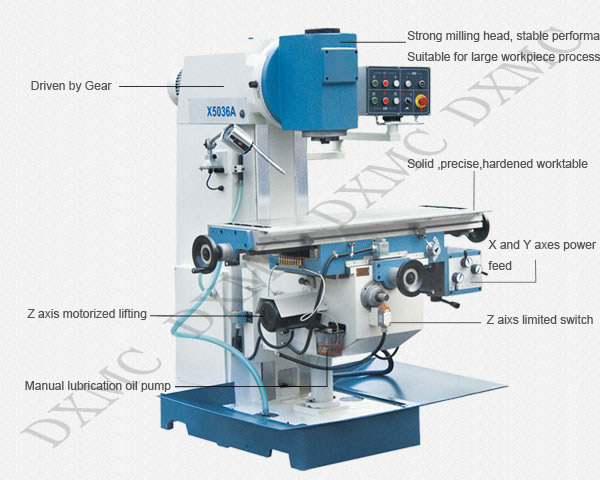

1.Simple Introduction

X5036A is a vertical milling machine, high- powered, processing range widely, automatic feed on two-axis, motorized lift on Z axis, hardened.

2.Product Advantage

  • Cast iron with high precision, long service life.
  • The rigidity of the spindle,strong cutting force.
  • Three axis hardening treatment, rectangular guideway.
  • Gear power feed,Z axis automatic rising-lowering.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
