Knee Type Milling Machine X6036A

Horizontal Knee Type Milling Machine X6036A With CE Standard For Sale

SpecificationsX6036A
Spindle taper7:24 ISO50
Spindle travel(mm)600x320x400
Distance from spindle axis to arm (mm)170
Distance from spindle nose to table surface(mm)0-440
Spindle speed range(r.p.m)60-1700 12 steps
Table size1250*360
Main motor(kw)4 kw
Motor for rapid device of table (X、Y)0.75kW
Motor for vertical device of table(Z)0.75kw
Range of longitudinal cross travel30-740mm/min 8 steps 1080mm/min (rapid)
Z speed of table (mm/min)590
T-slot (number-width-disance) (mm)3-18-80
Overall dimensions(mm)1880×1700×1700
N.W/G.W (kg)1850/1950

Standard accessories

Milling Chuck
Milling Vice
Milling Chuck
Spanner
Small Crank

Optional accessories

Rotary Table
DRO
Clamp Kit
Diviing Head

Horizontal Knee Type Milling Machine X6036A With CE Standard For Sale

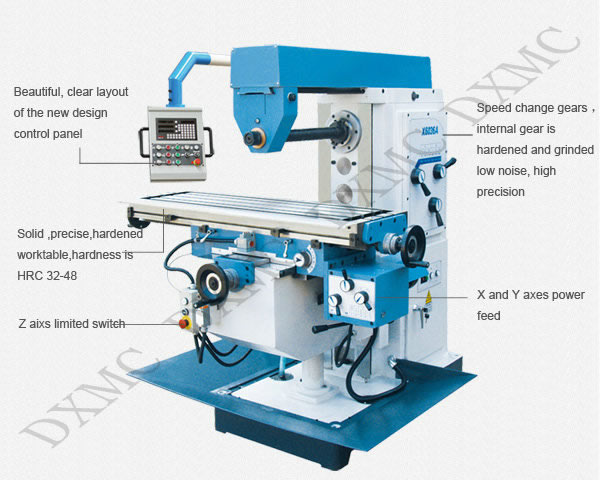

1.Simple Introduction

X6036A is a horizontal milling machine, power feed on two-axis , motorized lift on Z axis, three-axis hardened, steel-type strong, good stability.

2.Product Advantage

  • Cast iron with high precision, long service life.
  • Gear power feed,Three axis hardening treatment.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
  • Milling machine can be configured special accessories: vertical milling head, realize vertical milling function
