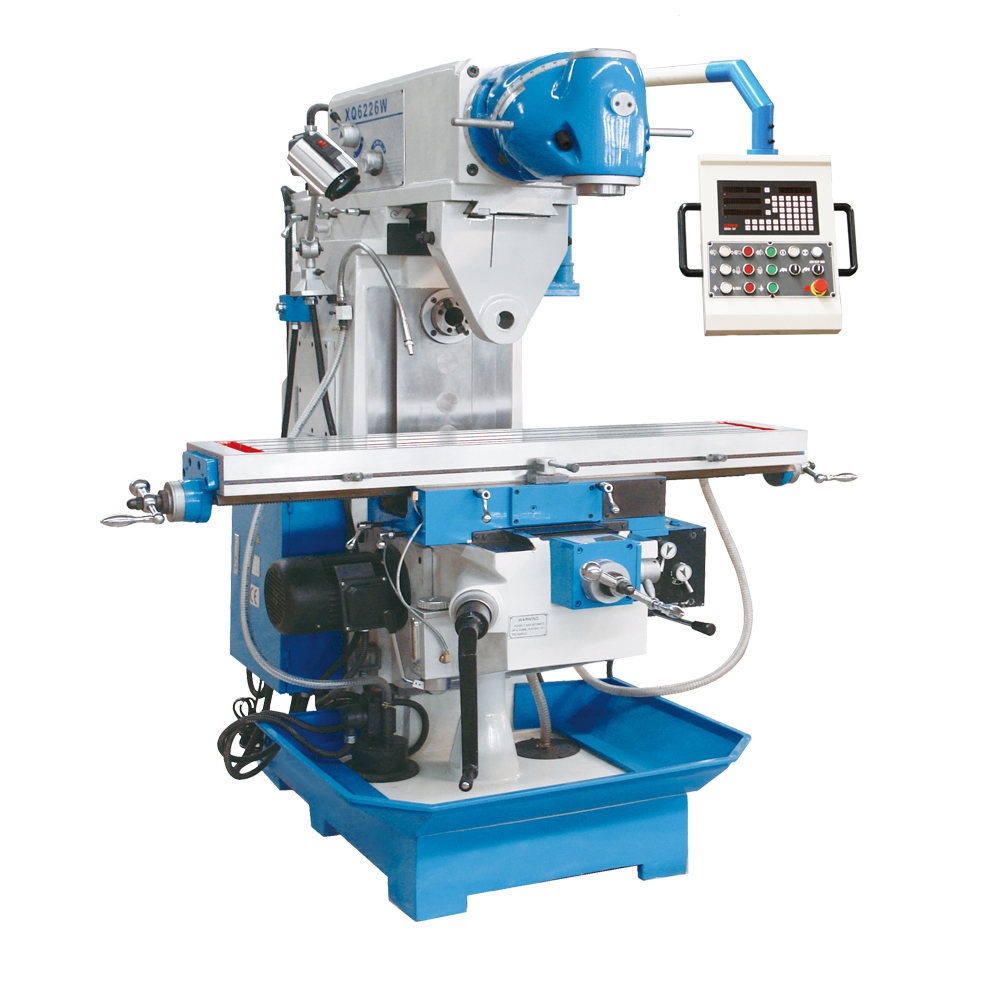

Universal Milling Machine XQ6226W

Precision Manual Universal Asphalt Milling Machine XQ6226W For Sale

specificazioniXQ6226W
Max.vertical milling dia (mm)125
Max. vertical milling cutter dia (mm)28
Swivel angle at awivel head(°)±360°
Table size(mm)1270*260
Table travel(mm)750*300*430
Ram travel(mm)420
Main motor(kw)3(V) 3(h)
Distance from spindle to table(mm)560
spindle speed Range (r.p.m)35-1600
Horizontal spindle speed range40-1300
Overall dimensions(mm)1655*1500*1730
N.W/G.W (kg)1480/1660

Detail

Universal Swivel Milling Head, head can swivel 360 degree
Work table feeding
Vertical milling speed changing
Screw
Vertical milling Before and after feeding
Horizontal milling change speed
Y axis automatic feeding
X and Y axis power feed
Lubrication system

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank

Optional accessories

Rotary Table
DRO
Clamp Kit
Diviing Head
Plug

Precision Manual Universal Asphalt Milling Machine XQ6226W For Salee

1.Simple Introduction

It is a vertical universal milling machine,vertical milling can be processed at any angle of the workpiece, milling head steel-type strong.

2.Product Advantage

  • Universal milling head, machining flexibility
  • Three axis hardening treatment
  • Mechanical feeding device
  • Independent of the horizontal milling function
