Universal Milling Machine XQ6232A

China Universal Vertical Milling Tools XQ6232A For Sale

SpecificationsXQ6232A
Spindle taper7:24 ISO40
Max end milling125 (V)100(H)
Swivel angle at awivel head(°)±360°
Table size1250*320
T-slot(number-width-distance)(mm)3/14/70
Main motor(kw)2.2
Distance from spindle to table(mm)110-490
Distance from spindle to column(mm)0-500
Range of spindle speed35-1600
Range of longitudinal cross travel22-555(8rank) 810(rapid)
Z-speed of table(mm/min)560
Motor for rapid device of table (X、Y)750
Motor for vertical device of table (Z)750
Overall dimensions(mm)1700*1560*1730
N.W/G.W (kg)1320/1420

Detail

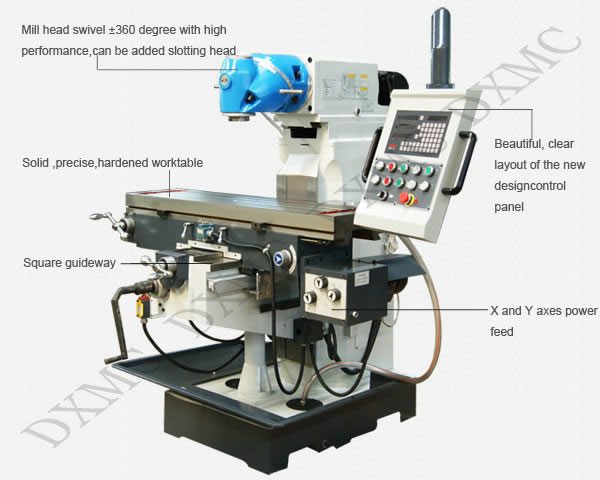

Universal Swivel Milling Head, head can swivel 360 degree
Lubrication system
Slotting Head (optional accessories)
X and Y axis power feed
Z axis motorized lifting

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank

Optional accessories

Rotary Table
DRO
Clamp Kit
Diviing Head
Tail Stock Turret
Plug

China Universal Vertical Milling Tools XQ6232A For Sale

1.Simple Introduction

Automatic feeds on X、Y、Z axes, motorized lifting and lowering of table on Z axis,can add swivel table.

2.Product Advantage

  • Universal milling head, machining flexibility
  • Three axis hardening treatment
  • Mechanical feeding device
  • The longer slide ,stability is good
