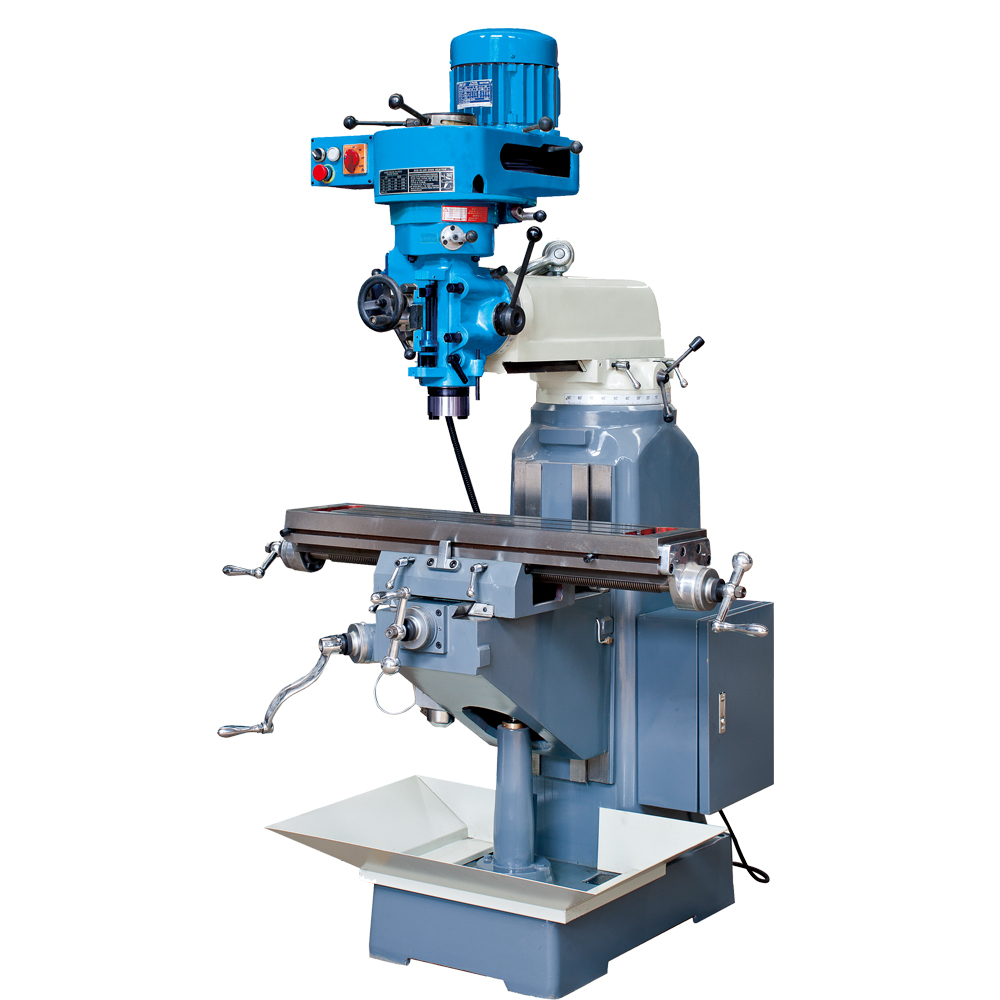

Vertical & Horizontal Milling Machine DM100

Vertical Mini Turret Bridgeport Milling Machine With Low Price DM100 For Sale

SpecificationsDM100
Spindle taperR8/ NT40
Table size910x200mm
Table travel560*240*350mm
Drilling capacity(max.)Ø15mm
Face milling Capacity (max)Ø75mm
End milling Capacity (max)Ø20mm
Sleeve diameter Ø86mm
Sleeve travel127mm
Spindle speed80-5440 rpm
Head incline(L-R)90°
Head lincline(back-forth)
Automatic spindle sleeve feed0.04/0.08/0.15mm/rev
T-slot size14mm / 64mm / 3
Distance from spindle to table350mm
Motor2.2KW/3Ph/50Hz
Motor coolant pump40W
size(L×W×H)1400x1320x1950mm
Net weight/Gross weight716/895kGS

Detail

CE Standard eletric part
All of spare parts are made in Taiwan

Standard accessories

Milling Chuck
Spanner
Small Crank

Optional accessories

Rotary Table
Milling Plug
DRO
Clamp Kit
Diviing Head
Reducing Sleeve

Vertical Mini Turret Bridgeport Milling Machine With Low Price DM100 For Sale

1.Simple Introduction

2.Product Advantage

  • Cast iron after artificial aging treatment, high precision, long service life.
  • Gear power feed,motorized lift on Z axis.
  • The table rotation.
  • Hardening treatment, rectangular guideway.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
