Vertical & Horizontal Milling Machine X6332C

High Quality Universal Vertical Turret Milling Machine X6332C For Sale

SpecificationsX6332C
Spindle taperISO40
Spindle travel(mm)150
Distance from spindle to column(mm)200-600(V)
Distance from spindle to table surface(mm)0-300(H)
Spindle speed range(r.p.m)75-3500 V 12 step 60-1350 H
Table size1250*320
Table travel800*300*300
Main motor(kw) 3.7/2(V)
T-slot (number-width-disance) (mm)3/14/70
Overall dimensions(mm)1820×1520×2270
N.W/G.W (kg)1850/2050

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank

Optional accessories

Rotary Table
Milling Plug
DRO
Clamp Kit
Diviing Head

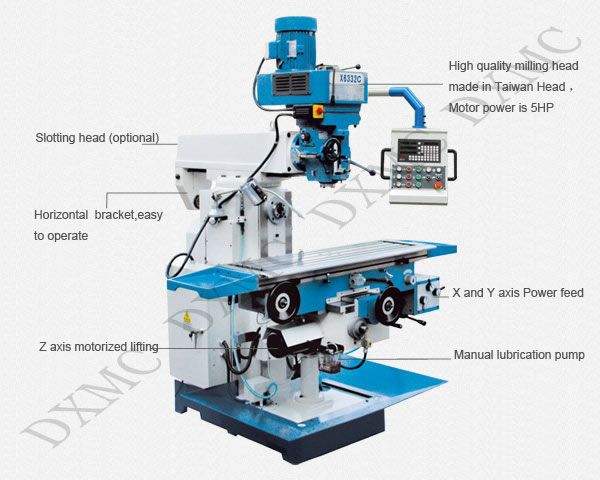

High Quality Universal Vertical Turret Milling Machine X6332C For Sale

1.Simple Introduction

X6332C used high-speed milling head, high- powered, high- speed range. The Max is about 5440 r.p.m. automatic feed on two-axis, motorized lift on Z axis.

2.Product Advantage

  • Cast iron with high precision, long service life
  • Gear power feed，motorized lift on Z axis
  • Three axis hardening treatment
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway
