Vertical & Horizontal Milling Machine X6332WA

High Precision Turret Vertical Milling Machine With CE X6332WA For Sale

SpecificationsX6332WA
Spindle taperISO40
Spindle travel127
Max. horizontal milling dia.(mm)100
Spindle speed range(r.p.m)80-5400 V 40-1300 (12) H
Table size1250*320
Table travel600*340
Main motor(kw) 2.2 V 3 H
Distance between spindle and table(mm)100-500
Max. Vertical milling dia.(mm)Ф25
Overall dimensions(mm)1520×1630×2200

Detail

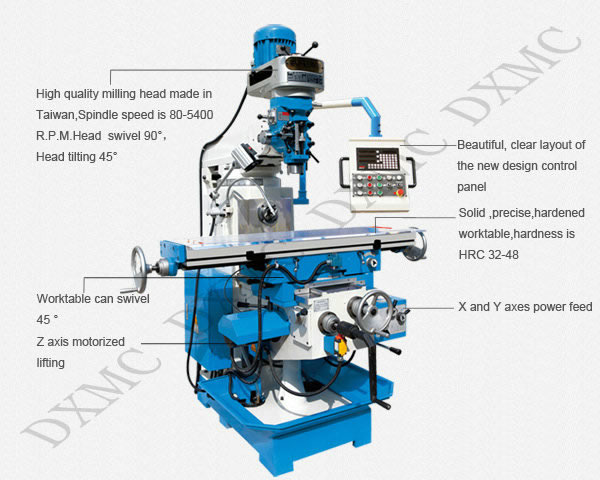

High quality turret milling head, high power and high speed left and right swivel 90 degree, front and back 45 degree
Z axis motorized lifting
Table swivel 45 degree
Lubrication system
Working table swivel 45 degree

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank

Optional accessories

Rotary Table
Milling Plug
DRO
Clamp Kit
Diviing Head
Reducing Sleeve

High Precision Turret Vertical Milling Machine With CE X6332WA For Sale

1.Simple Introduction

2.Product Advantage

  • Cast iron after artificial aging treatment, high precision, long service life.
  • Gear power feed,motorized lift on Z axis.
  • The table rotation.
  • Hardening treatment, rectangular guideway.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
