Vertical & Horizontal Milling Machine X6336

Vertical & Horizontal Milling Machine X6336

SpecificationsX6336
Spindle taperISO40 (V) ISO50(H)
Distance from vertical spindle to worktable(mm)135-485
Distance from vertical spindle to worktable(mm)0-350
Spindle speed range(r.p.m)68-7200 V 60-1800 H
Table size1250*360
Table travel1000*300*400
Main motor(kw) 4.0( H) 3.7/2(V)
Arm travel(mm)500
Overall dimensions(mm)2220×1790×2360
N.W/G.W (kg)2500/2700

Detail

A &T Air Draw Bar (optional )
Electric lubrication pump （optional)

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank
Drilling Chuck
Stone Bolt
Big Crank

Optional accessories

Rotary Table
Milling Plug
DRO
Boring device
Clamp Kit
Diviing Head
Tail Stock Turret
Reducing Sleeve

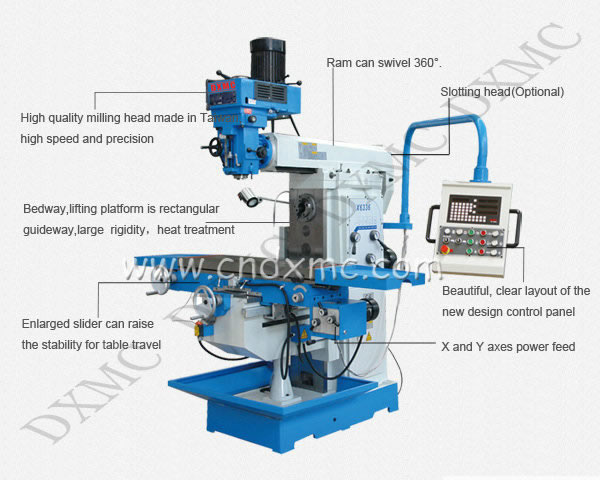

High speed automatic feed table travel milling machine X6336

1.Simple Introduction

X6336 with Taiwan high speed milling head, high precision and high-speed range. Vertical-horizontal dual-purpose,table travel large and stable, automatic feed on two-axis, motorized lift on Z axis, three-axis hardened.

2.Product Advantage

  • Cast iron after artificial aging treatment, high precision,long service life.
  • Gear power feed，motorized lift on Z axis.
  • Hardening treatment, rectangular guideway.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
  • The longer slide, stability is good.
