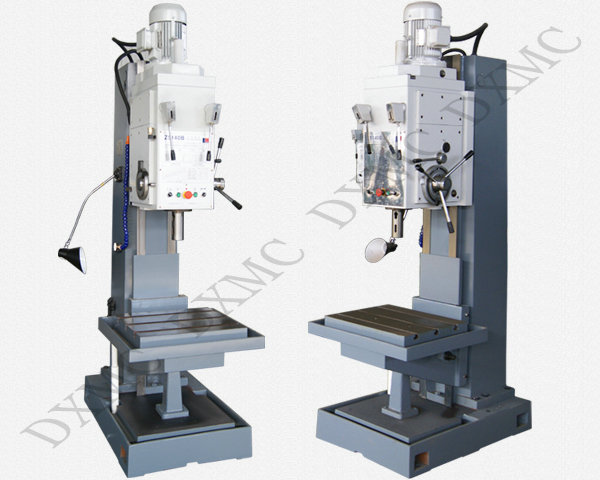

Vertical Drilling Machine Z5140B
Vertical Drilling Machine Z5140B
| Specification | Vertical Drilling Machine Z5140B |
| Max.drilling diameter | 40 |
| Max.feeding resistance | 16000 |
| Max spindle torque (N.M) | 350 |
| Spindle taper | Morse No.4 |
| Distance from spindle center to guide way(mm) | 335 |
| Spindle travel(mm) | 250 |
| Spindle head travel(mm) | 200 |
| Spindle Speed(r/min) | 31.5—1400(12 steps) |
| Feed rate(mm/r) | 0.056—1.80(9 steps) |
| Table travel(mm) | 300 |
| Table size(mm) | 480×560 |
| Distance from spindle surface to table | 750 |
| Main motor power(kw) | 3 |
| Flow of cooling pump(L/min) | 25 |
| Dimension size(mm) | 1040×906×2530 |
| Weight(kg) | 1250 |
