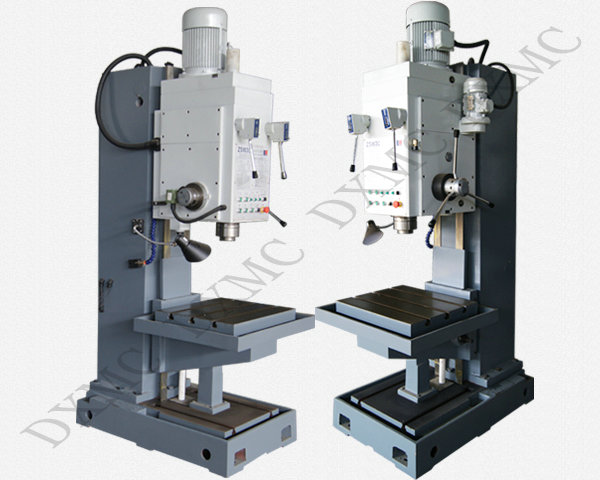

Vertical Drilling Machine Z5163C
Vertical Drilling Machine Z5163C
| Specification | Vertical Drilling Machine Z5163C |
| Max.drilling diameter | 63 |
| Max.feeding resistance | 30000 |
| Max spindle torque (N.M) | 800 |
| Spindle taper | Morse No.5 |
| Distance from spindle center to guide way(mm) | 375 |
| Spindle travel(mm) | 250 |
| Spindle head travel(mm) | 250 |
| Spindle Speed(r/min) | 40—570(9 steps) |
| Feed rate(mm/r) | 0.1—0.78(6 steps) |
| Table travel(mm) | 300 |
| Table size(mm) | 650×550 |
| Distance from spindle surface to table | 800 |
| Main motor power(kw) | 5.5 |
| Flow of cooling pump(L/min) | 25 |
| Dimension size(mm) | 1452×965×2787 |
| Weight(kg) | 2500 |
