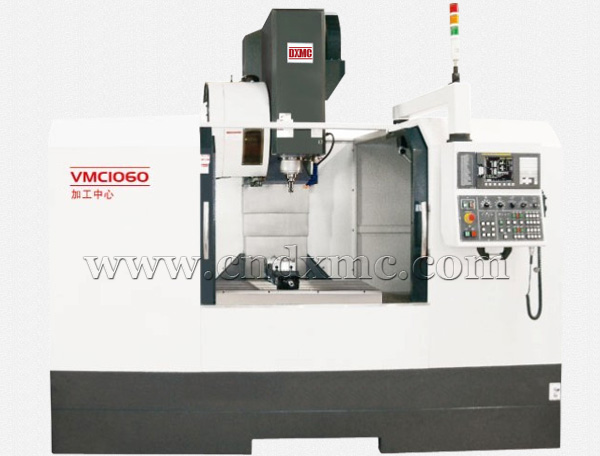

| Technical parameters | Content | Unit | VMC1060 | VMC1370 | VMC1580 | VMC1690 |
| Workbench | Table size(L*W) | mm | 1300x600 | 1400x700 | 1700x800 | 1800x900 |
| Axis (X/Y/Z) | mm | 1060/600/600 | 1300/700/700 | 1500/800/700 | 1600/900/700 |
| Maximum table load | kg | 1000 | 1200 | 1500 | 1600 |
| T-slot | Number/width/spacing | mm | 18x5 | 18x5 | 18x7 | 22x5 |
| Main shaft | Spindle taper | | BT40 | BT50 | BT50 | BT50 |
| Spindle center to column surface distance rail | mm | 540 | 720 | 820 | 950 |
| Spindle speed range | mm | 40-6000 | 40-6000 | 40-6000 | 40-6000 |
| Motor Powe | rpm | 7.5/11 | 11/15 | 15/18.5 | 18.5 |
| Spindle outer diameter | kw | 120 | 150 | 155 | 155 |
| Rapid traverse speed X/Y/Z | m/min | 24 | 18 | 18 | 18 |
| Feed rate | Feed movement speed X/Y/Z | m/min | 18 | 10 | 10 | 10 |
| Three-axis servo motor | KW | 1.5 | 2.0 | 3.5 | 4.5 |
| Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Accuracy | Rrpeat positioning accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| Capacity | | 24 | 24/32 | 24/32 | 24/32 |
| Magazine | Machine weight | Kg | 7.6 | 9.5 | 11.0 | 17.0 |
| General paramenters | Dimensions | mm | 2650x2300x3250 | 3500x3200x3100 | 4300x3750x3100 | 5000x3800x3000 |
