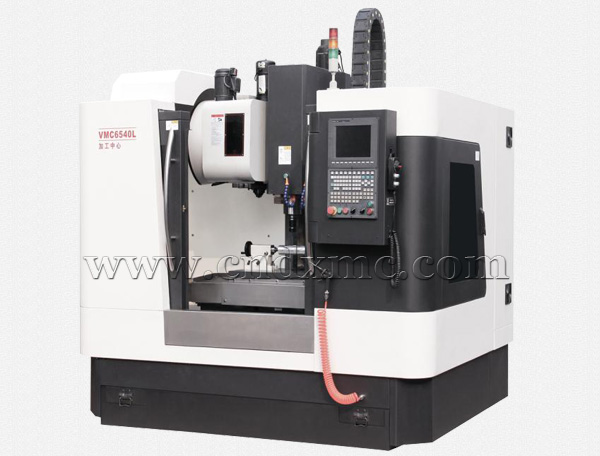

Vertical Machining Center VMC6540L

Technical parameters	Content	Unit	V50	V60	V61	V65	V85
Workbench	Table size(L*W)	mm	630x280	800x320	950x350	900x400	500x1000
	Axis (X/Y/Z)	mm	500x280x400	610x320x400	650x350x500	650x400x500	850x500x500
	Maximum table load	kg	300	350	400	450	600
T-slot	Number/width/spacing	mm	3-14-80	3-14-100	3-14-100	3-18*125	5-18*100
Main shaft	Spindle taper		BT30	BT40	BT40	BT40	BT40
	Spindle center to column surface distance rail	mm	360	376	470	496	592
	Spindle nose to table distance	mm	100-500	130-530	150-650	150-650	150-700
	Spindle speed range	rpm	100-8000	100-8000	100-8000	100-8000	100-8000
	Motor Power	kw	2.2	3.7	3.7/5.5/7.5	7.5/11	7.5/11
Feed rate	Rapid traverse speed X/Y/Z	m/min	15/15/12	24/36	24/36	24/36	24/36
Feed rate	Feed movement speed X/Y/Z	m/min	10/10/5	12	12	12	15
Accuracy	Positioning accuracy	mm	0.01	0.01	0.01	0.01	0.01
Accuracy	Rrpeat positioning accuracy	mm	0.008	0.005	0.005	0.005	0.005
Magazine	Capacity		6T	12T	12T	16T	24T
	Maximum tool diameter	mm	100	100	100	100	150
	Maximum tool weight	Kg	6	8	8	8	8
General paramenters	Machine weight	Kg	2100	3100	3300	4500	5500
General paramenters	Dimensions	mm	1900x1800x1900	2360x1815x1900	2360x1815x1900	2360x1815x1900	2400x2450x2350
